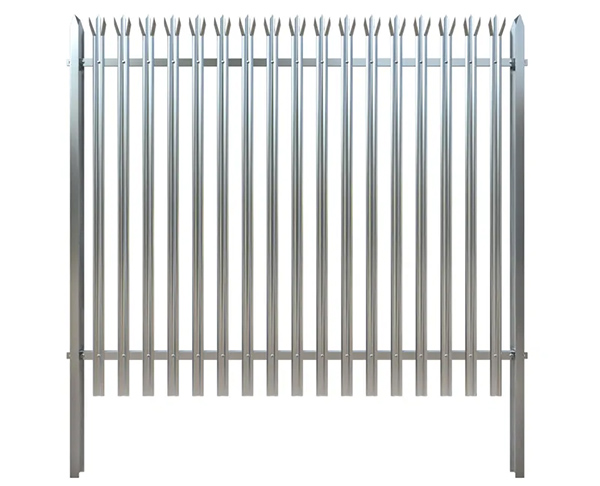

Palisade Fence

Palisade fencing, a security wire fence with “D” and “W” section pale provides an effective deterrent to intruders. The two head styles – “D” pale profile, and “W” section pale – for different choice to meet a perceived level of security risk. “D” section thickness (shown as table-1) 2.0 mm /3.0 mm and “W” section thickness 2.0 mm /2.5 mm are chosen by the risk assessment for a particular uses.

As effective security fencing, palisade fencing with forbidding appearance, inherent strength and high damage resistance becomes the best choices of protection fencing. Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foothold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.

Material: low carbon steel, stainless steel, hot rolled or cold rolled.
Fence length: 2.75 m.
Fence height: 1.2 m to 3.6 m.
RSJ post: 102 mm × 44 mm for fences below 2.7 mm, 127 mm × 66 mm for fences above 2.7 mm .
Square post: 50 mm × 50 mm × 1.6 mm thickness or 76 mm × 76 mm × 1.6 mm thickness.
Pales height: 1.2 m to 3.6 m.
Pales thickness: 2 mm to 5 mm .

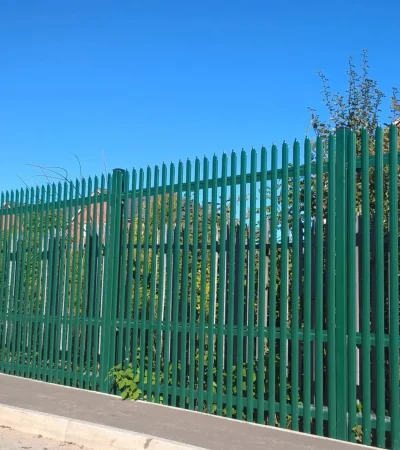

Anti-rust surface treatments: hot dipped galvanized or PVC coated with various colors (green, blue, yellow, red, shown as the picture above) for higher rust resistance.
